CO2 sequestration is unlocking new opportunities for the oil and gas industry, but success hinges on overcoming the challenges of carbon capture, utilization, and storage (CCUS). With the right expertise in drilling and wellsite management, these obstacles can be transformed into cost-saving, efficient solutions that drive progress in CO2 storage projects.
Key CCUS Challenges
When it comes to implementing CCUS technology, there are several key challenges that need to be addressed, particularly for the oil and gas industry. Let’s take a look at some of the major obstacles standing in the way of large-scale deployment, according to a recent JPT article.
1. High Costs
A major hurdle in CCUS implementation is the high cost, largely driven by energy consumption. Technologies like absorption, adsorption, and membrane separation require significant financial investment, but the real challenge comes from their energy demands.
Absorption technology, for example, is well-established but can consume up to 30% of the power generated by a plant, affecting overall efficiency. Direct Air Capture (DAC), while promising, is even more energy-intensive, with costs ranging from $300 to $700 per ton of CO2 removed. These combined factors can make it difficult to scale CCUS efficiently.

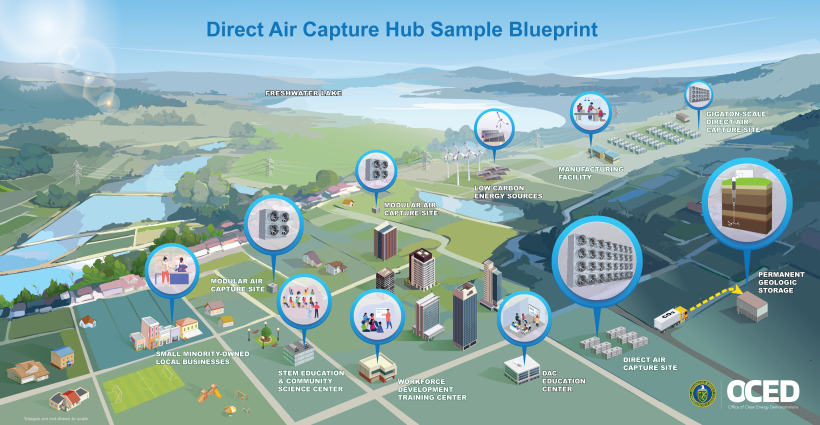

Illustration of the Department of Energy’s Regional Direct Air Capture Hubs program courtesy of the Department of Energy Office of Clean Energy Demonstrations.
2. Scale of CO2 Utilization
While CO2 can be used in certain applications like enhanced oil recovery (EOR), current demand barely scratches the surface of what’s emitted. The gap between industrial use and the volume of CO2 produced by the energy sector is significant.
To bridge this gap, large-scale storage solutions are essential. Since industrial applications alone cannot manage the excess CO2, underground storage in formations like aquifers or depleted reservoirs must be developed further, requiring significant infrastructure investment.
3. CO2 Storage
CO2 storage in aquifers and depleted hydrocarbon reservoirs holds great potential, but each option presents challenges.
Aquifers offer vast storage capacity, though sealing to prevent leakage requires complex geological analysis and long-term monitoring. Depleted hydrocarbon reservoirs, already well-mapped from past production, present a reliable option for CO2 injection, but old wells must be sealed, and coordination with landowners is needed.
Subsurface mineralization is another promising method, as it converts CO2 into stable minerals within certain rock types. While pilot projects have been successful, scaling this solution will require further research and infrastructure investment.
Effective monitoring and geological assessments are key to making these storage methods viable.
4. CO2 Transportation
Transporting CO2 presents several challenges, particularly in managing pipeline corrosion. CO2 can become corrosive when water is present, forming carbonic acid that can damage steel CO2 pipelines. To avoid this, pipelines must be designed to handle dry CO2 with minimal water vapor.
Maintaining high pressure—above 1,300 psi—is also important to keep CO2 in a dense, liquid-like state, allowing for efficient transport over long distances. This pressure level enables the use of pumps instead of compressors, reducing both energy consumption and operational costs.
5. Regulatory Challenges
One of the major obstacles to widespread CCUS adoption is the lack of infrastructure in many regions. Building pipelines, storage sites, and capture facilities requires significant investment, but progress is often delayed by unclear regulatory frameworks.
In addition, economic incentives that would make CCUS financially feasible are often missing. Policies, tax incentives, and government support are necessary to drive the growth of this technology, but many areas still lack the necessary backing to move forward.
6. Public Acceptance
Public awareness and support are important for the success of CCUS projects. Without a clear understanding of the benefits and potential risks, it can be difficult to build the necessary support for large-scale initiatives. Educating the public and engaging stakeholders is key, particularly when discussing long-term storage and the significant infrastructure investment involved.
Addressing these challenges is necessary for the successful integration of CCUS in the energy sector. Solutions will require collaboration across industries, with a focus on innovation, infrastructure development, and policy support.
Oil and Gas Solutions for CCUS
Drilling is fundamental to the success of CCUS projects, particularly in safely sequestering CO2 underground.
The oil and gas industry’s expertise in drilling techniques is integral for accessing geological formations that serve as long-term storage sites for captured CO2. The same drilling technologies used in hydrocarbon extraction are applied to create injection wells that allow CO2 to be stored deep beneath the surface.
A total drilling fluids program plays an important role in making these projects viable. This program includes a combination of drilling mud systems, solids control, haul-off and disposal services, and equipment rentals, all working together to maintain smooth operations.
- Drilling mud systems help stabilize the wellbore, reduce friction, and manage pressure during drilling, which is key to accessing deep reservoirs without interruptions.
- Solids control removes drilled solids from the drilling fluids, allowing the mud to be reused, which reduces both material costs and waste.
- Haul-off and disposal services manage the transportation and proper disposal of waste materials such as drill cuttings and spent fluids, supporting both operational efficiency and environmental compliance.
- Equipment rentals, including pumps and storage tanks, provide the necessary flexibility to meet different site conditions and operational demands.
These integrated services streamline the drilling process, support CO2 injection, and help minimize operational downtime. With the established technologies and capabilities from the oil and gas sector, CCUS projects are able to move forward efficiently, from initial drilling to the long-term storage of CO2.
Cracking the Code of CCUS: The Panther Advantage™
The success of CCUS projects depends on precision and expertise, and that’s where Panther Fluids excels. With our experience in wellsite operations, we provide the tools and services needed to support the drilling process for CO2 sequestration.
Our total drilling fluids program includes advanced drilling mud systems, solids control, and haul-off services. These systems help streamline operations with a closed-loop design and have even reduced costs by up to 25%. We also provide essential equipment rentals, such as pumps and tanks, and have extensive experience in the permitting processes for CO2 wells.
By offering a full range of wellsite solutions, Panther Fluids helps keep drilling projects efficient and cost-effective, from start to finish. Discover The Panther Advantage™ today and see how our expertise can keep your wellsite running smoothly.
